QF15 TUF A+C 30W
USB MODULE
Features
Product Highlights
Product Description
The QF15 TUF 30W ensures that you stay ahead of the game with its combined Type A & Type C USB Ports which deliver top-notch efficiency with cutting-edge technology. Engineered for seamless integration into a range of applications, the QF15 TUF features secure mounting brackets allowing it to be mounted in panel thicknesses of up to 3mm with no tools required. Plus, it comes equipped with an internal GST18i3 Male Connector, linking directly to a matching power source cable.
With multiple units able to connect via OE J-Couplers or Wieland Distribution Blocks, the QF15 TUF is perfect for scalable installations across diverse industries. Finally, connecting these units to a common mains AC outlet power supply completes the setup process with ease. Prepare for hassle-free operation with minimal effort on your part.
We test every pin on every connection in every socket
All units are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch.

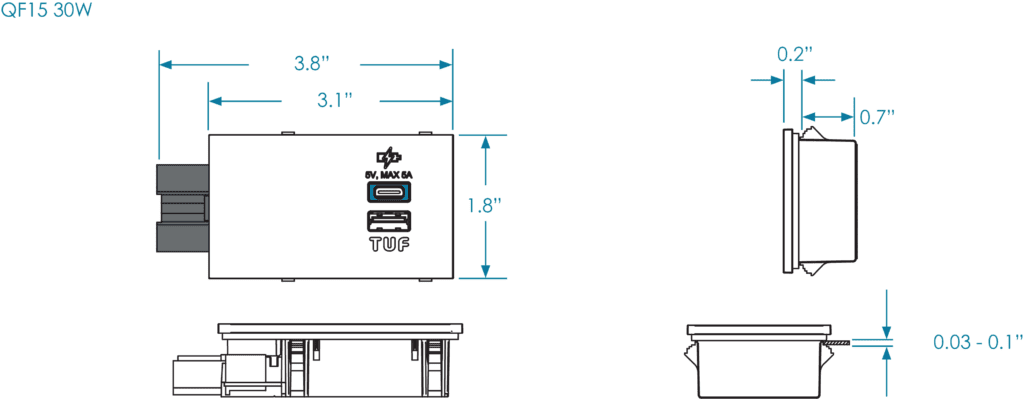

QF15 TUF A+C 30W datasheet
- cable options:
NA - materials:
• Polycarbonate
all your questions answered
Q.
How many insertions has the module been tested to withstand?
A.
QF15 TUF 30W has been independently tested to over 10,000 insertions.
Q.
What is the difference between QF15 TUF 30W and QF15 TUF HP?
A.
QF15 TUF 30W provides 30W of power able to charge small mobile devices via the A+C ports.
QF15 TUF HP provides a total 60W of power, capable of charging mobile devices via both A+C ports, and laptop charging via USB-C.
Q.
Is TUF suitable to install in public areas?
A.
Yes, you can safely charge using TUF in public areas!
TUF is designed for device charging only. Data transfer is not possible as TUF has no external data connections or the ability to store malicious code.
