tardis undercarriage
UNDERDESK QIKFIT
Features
- Part of the QIKFIT system
- Add TUF-R HP or 30W USB modules with TUF | PROTECT
- Choice of QIKFIT POWER MODULES and data
Product Highlights
Product Description

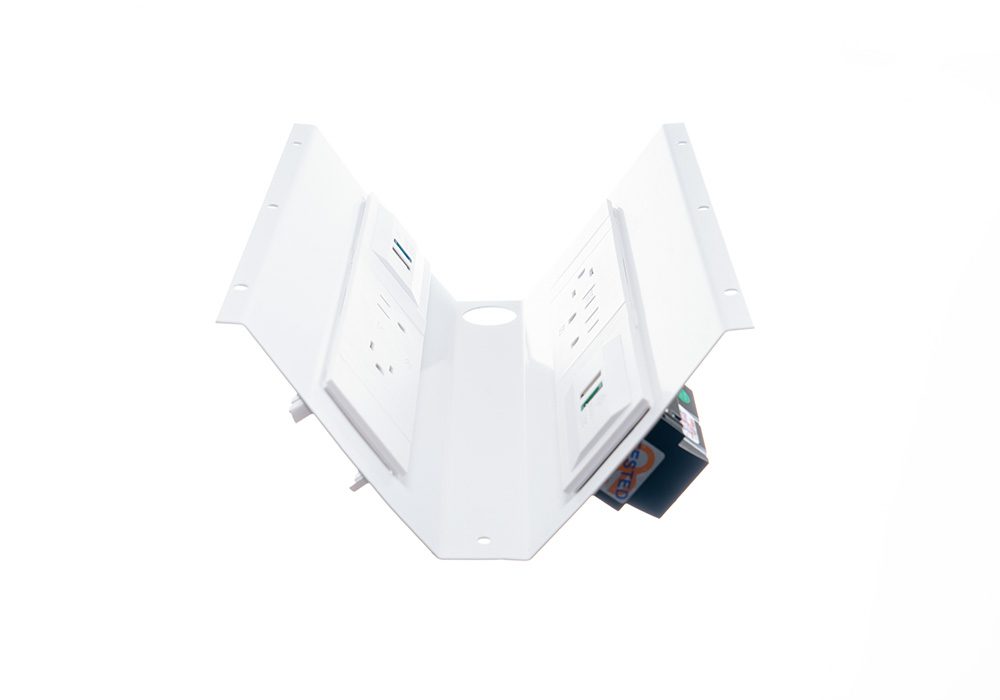

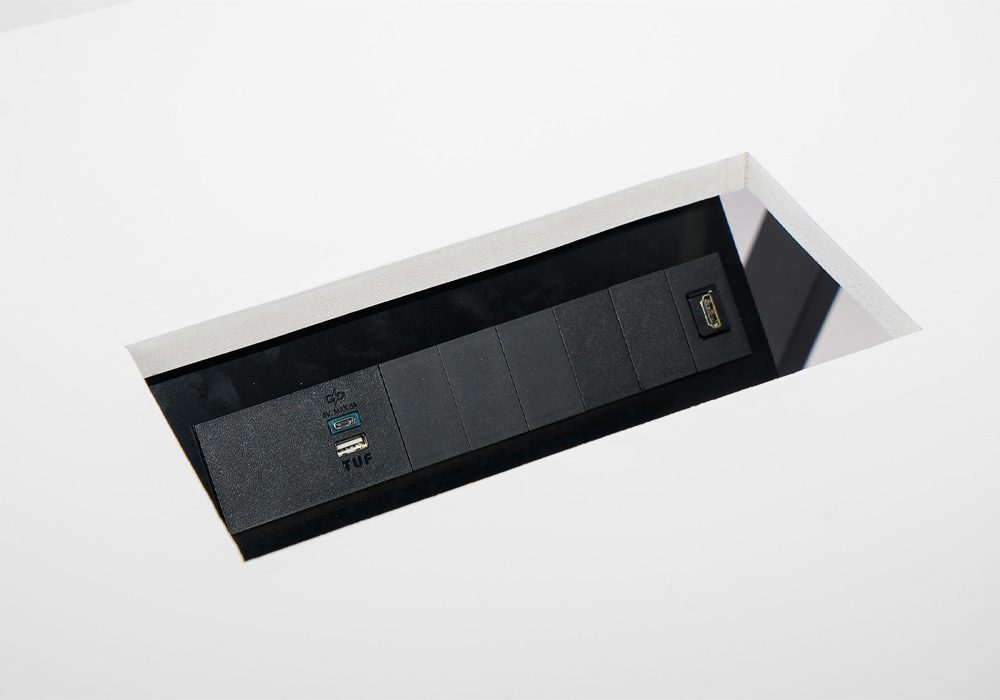

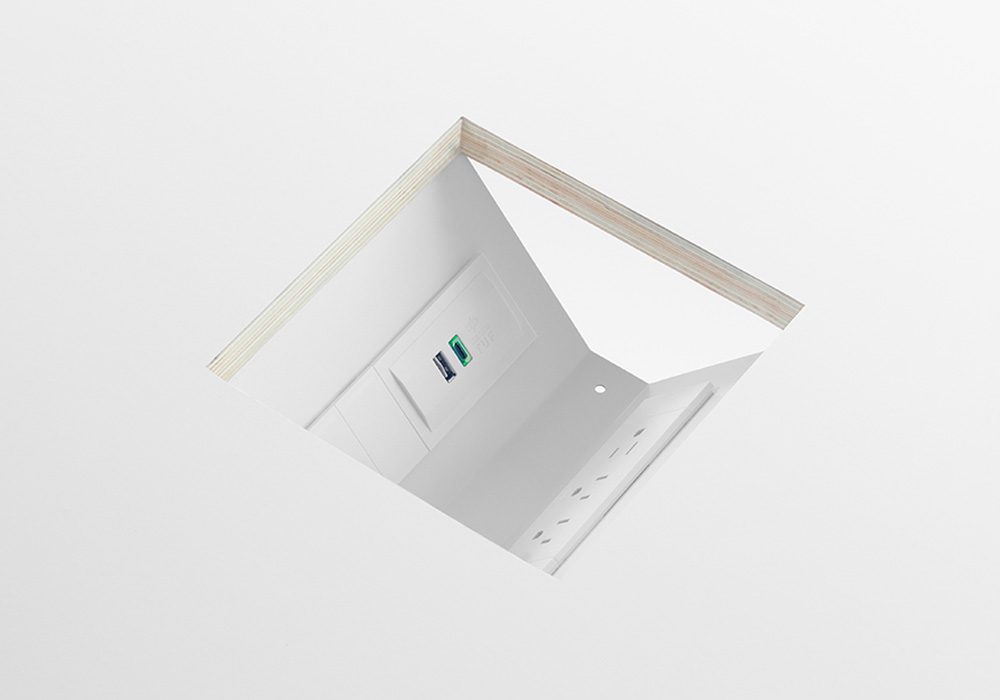

The TARDIS Undercarriage is a stand-alone undercarriage that allows you to add power, USB charging, data, and AV to a cut-out in your desk or table. The TARDIS Undercarriage is available in two lengths; QF25 and the longer QF45 for larger cut-outs.
Both feature provisions for cable management umbilical attachments, and both are available in Black or White (RAL 9003).
The TARDIS Undercarriage can be combined with the OE PATHFINDER Umbilical for a complete cable management solution.
We test every pin on every connection in every socket
All units are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch.
Cable options:
Power/USB modules have GST 18i3 male connectors for connection of an OE starter lead or GST interconnect cable.
Materials:
1.2 mm Powder coated mild steel
Dimensions:
all your questions answered
Q.
What can be specified in the TARDIS Undercarriage 25?
A.
• 1 x QIKFIT 2G power module (+ QF3 spacer)
or
• 1 x QIKFIT TUF plus 2 x QF05 Data/AV modules
or
• 5 x QF05 Data/AV modules
Q.
What can be specified in the TARDIS Undercarriage 45?
A.
The TARDIS Undercarriage 45 can be fitted with the following QIKFIT module combinations, in each of the two stacked apertures:
• 1 x QIKFIT 2G power module (+ QF3 spacer) plus 4 x QF05 Data/AV modules
or
• 1 x QIKFIT 3G power module (+ QF3 spacer) plus 2 x QF05 Data/AV modules
or
• 2 x QIKFIT 2G power modules*
or
• 1 x QIKFIT 2G power module (+ QF3 spacer) plus 1 x QIKFIT TUF module, 1 x QF05
or
• 9 x QF05 Data/AV modules
*Locking clips must be removed before assembly
